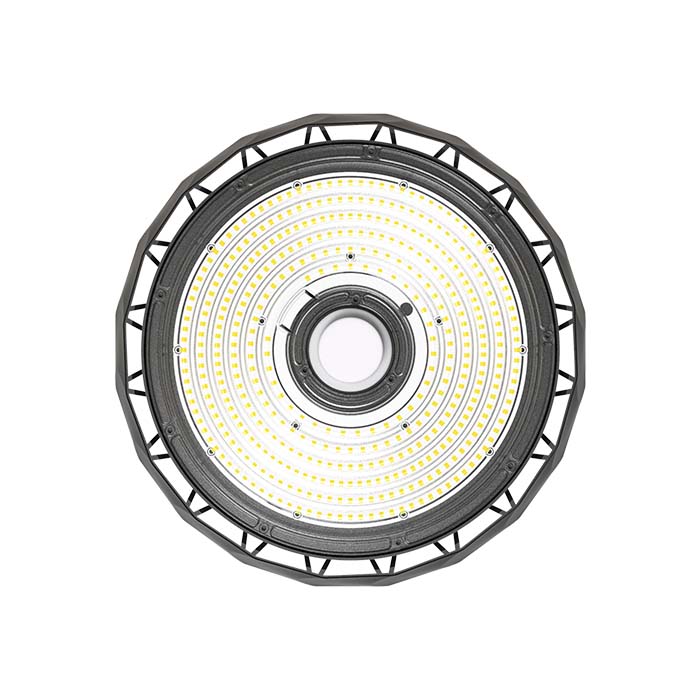

200W Bluetooth Microwave Sensor UFO High Bay Light

200W Bluetooth Microwave Sensor UFO High Bay Light

Product introduction

The Yaorong Bluetooth Fixture Sensor is designed for Smart Lighting Fixtures (Bluetooth Mesh Communication). Integrated sensors capture data that is both processed locally and transmitted over the Yaorong network, enabling a full suite of applications.

Application range

gas station,supermarket,filling station,tunnel,parking garage,workshop,etc.

Product Details



About Yaorong Bluetooth Microwave Sensor

—————


Bluetooth Microwave Sensor Features

Bluetooth Microwave Sensor Application

Bluetooth Control

Sensor Coverage

Meet DLC 5.2 Networked Lighting Control System.

Localized Lighting Control: Light-level schedules, preferences, and profiles for each fixture are wirelessly communicated at system setup and stored for continuous operation.

Bluetooth Low Energy: An embedded BLE radio allows the sensor to receive and transmit beacons as well as support communication with lighting control devices and other sensors.

OccupancyA/ancacy/Manual: A digital Passive Infrared (Microwave sensor) sensor combined with ambient with 3 difference modes as options.

Daylight Harvesting: Captured ambient light information is locally processed to raise and lower light levels based on available daylight.

Room and Zone Control: Pairs with room switches for code-compliant manual-on or auto-off capability. Sensors can be grouped into zones that share occupancy sensing data and coordinate light control based on detected motion.


Bluetooth Microwave Sensor Parameters


Bluetooth Microwave Sensor
Motion SensingMicrowave Sensor
Input Power10-28VDC,>50mA
Control Output0-10V, max 25mA sinking current
Mounting Height50ft(15m) Max.
Detection angle360°
Operating temperature-20°C-60℃
IPRatingIP65
Wireless Standards5.0 Bluetooth Mesh

Bluetooth Microwave Sensor Size Atlas



Yaorong Bluetooth Microwave Sensor UFO High Bay LightAdvantages

—————


1.Save electricity costs:  Compared with other traditional lamps, LED high bay lights can save more than  50% of electricity costs. With the same lighting effect, Yaorong Technology LED  high bay lights have lower power and lower electricity costs.

2.The material is environmentally  friendly: the interior of the LED high bay light does not contain mercury and  other heavy metals. When damaged or destroyed, it will not cause danger or  pollution to human health and the environment. It can also be recycled, in line  with the characteristics of green and environmental protection.

3.Good seismic performance:  Yaorong Technology LED high bay lights use epoxy resin to replace traditional  glass, and there is no hidden danger of traditional lamps. Even if it is dropped  on the floor, it will not be easily damaged. It has good seismic performance and  is convenient for transportation.

4.Optional beam angle: Yaorong  Technology LED high bay light has 10°/30°60°/85°/135° and other beam angles to  choose from, optional with optical lens. It can be used for stage and lighting  lighting, and the lighting effect is remarkable.

5.Low energy consumption: Yaorong  Technology LED high bay lights have high electro-optical conversion efficiency.  Compared with traditional light source lighting, they can save energy by more  than 50%, greatly reduce power consumption, and achieve energy-saving  purposes.

6.Intelligent light/human sensor:  Yaorong Technology LED high bay light can be equipped with intelligent sensor  module, the light will be on when people come, and the light will be off when  people go. Intelligent dimming and microwave induction configuration are  optional, freeing hands and embracing life.



Yaorong Bluetooth Microwave Sensor UFO High Bay Light Certification

—————





Yaorong Bluetooth Microwave Sensor UFO High Bay Light Parameters

—————


Bluetooth Microwave Sensor UFO High Bay Light
ModelCRILuminous FluxPower
YR-HB252-W100≥7013000LM100W
YR-HB320-W150≥7019500LM150W
YR-HB320-W200≥7026000LM200W
YR-HB320-W240≥7031200LM240W
CCT30K/40K/50K/60K/70K
Warranty5 years
Temperature-40°~50°
Power Efficiency≥0.9
Protection levelIP65
Beam angle60°/90°/120°
Shell ColorBlack/Silver/White/Customized Color
CertificationETL/DLC/CE/ROHS/3C/SAA

Yaorong Bluetooth Microwave Sensor UFO High Bay Light reflectors

—————


3 kind reflectors for option,All covers have 60°/90°/120°degree for options


Yaorong Bluetooth Microwave Sensor UFO High Bay Light Light Distribution

—————



60° light distribution angle

90° light distribution angle

120° light distribution angle

Yaorong FONDA-RTU200 centralized controller Parameters

—————


FONDA-RTU200 centralized controller
NameFONDA-RTU200 centralized controllerTemperature-40°~85°
Power12V batterySensitivity-80~-60dBV
CommunicationSupport GPRS communication mode, support Ethernet remote communication modeInterfaceSupport RS485, USB and Ethernet communication interface
Switch outputBuilt-in 4 DO switch output, 250VAC/5AFrequency132KHz
SystemEmbedded Linux operating system, clear software structure,
Reliable performance, easy to upgrade
Surge immunityLevel 2, Level 3, Level 4
Elec ParameterVoltage, current, power, factor, electric energyProtection levelIP65
Dimensions288*177*95mmAntenna typeExternal
Advantages1. With LCD display function;
2. Based on a high-performance 32-bit industrial-grade ARM9 as a microcontroller;  Using a highly reliable Linux operating system as an embedded application platform;
3. Built-in smart meter, realize remote data reading of electric energy and other data, support remote data reading of external electric meter;
4. Fully sealed protective shell, strong anti-interference ability, can withstand high voltage, lightning and high frequency signal interference;

 Bluetooth Microwave Sensor UFO High Bay Light Size Atlas

—————

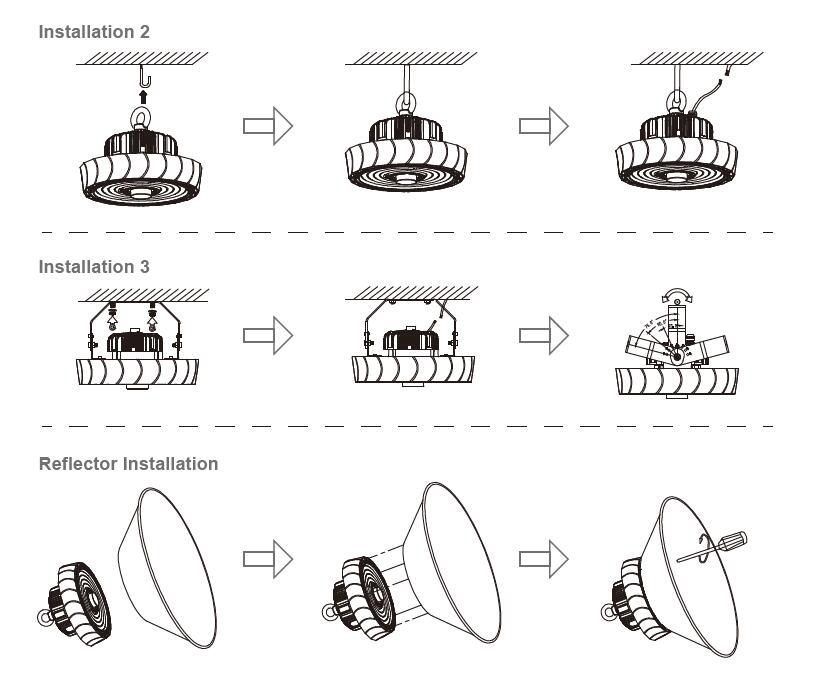

Bluetooth Microwave Sensor UFO High Bay Light Installation methods Atlas

—————





 Bluetooth Microwave Sensor UFO High Bay Light Packaging information

—————


WattageProduct Dimension(mm/in)Carton Box DimensionN.W (Kg/lb)G.W(Kg/lb)One Carton
100W252×252×180mm
9.92×9.92×7.09in
300×300×190mm
11.81×11.81×7.48in
2.5Kg(5.51lb)3.0Kg(6.61lb)1PCS
150W252×252×180mm
9.92×9.92×7.09in
300×300×190mm
11.81x11-81×7.48in
2.7Kg(5.95lb)3.4Kg(7.50lb)1PCS
200W320×320×193mm
12.60×12.60×7.60in
370×370×200mm
14.57×14.57×7.87in
3.2Kg(7.05lb)4.1Kg(9.04lb)1PCS
240W320×320×193mm
12.60×12.60×7.60in
370×370×200mm
14.57×14.57×7.87in
3.5Kg(7.72lb)4.5Kg(9.92lb)1PCS
PC Reflector470×470×210mm
18.50×18.50×8.30in
370×370×200mm
14.57×14.57×7.87 in
/6.3Kg(13.89lb)10PCS
AL Reflector520×520×380mm
20.50×20.50×15.00in
370×370×200mm
14.57×14.57×7.87in
/7.6Kg(16.76lb)10PCS

 Bluetooth Microwave Sensor UFO High Bay Light Packaging Atlas

—————



Precautions for installation of  Bluetooth Microwave Sensor UFO High Bay Light

—————


  • Please cut off the power before installation and make sure that the installation part can bear the weight of the lamp.
  • In order to prevent the lamp from falling off, please make sure that the installation is correct.
  • Please do not use it in a place with corrosive gas.
  • Please do not cover any material on the lamp.
  • For safety, please connect the ground wire securely.
  • This LED lamp has a five-year warranty from the date of purchase.
  • However, failures caused by disassembly, modification, or improper construction of this product are not within the scope of this warranty.



Five-year warranty

—————

  • Yaorong Technology is committed to providing customers with cost-effective LED lighting products. And provide high-quality after-sales service ahead of peers.
  • Yaorong Technology provides a 5-year warranty. However, unauthorized disassembly or destruction of Yaorong Technology LED lighting products will not be eligible for warranty service.
  • If you need after-sales service support, please contact our after-sales staff during the warranty period. Yaorong Technology after-sales engineers communicate with you about after-sales matters.
