Bluetooth Microwave Sensor Features
Bluetooth Microwave Sensor Application
Bluetooth Control
Sensor Coverage
Meet DLC 5.2 Networked Lighting Control System.
Localized Lighting Control: Light-level schedules, preferences, and profiles for each fixture are wirelessly communicated at system setup and stored for continuous operation.
Bluetooth Low Energy: An embedded BLE radio allows the sensor to receive and transmit beacons as well as support communication with lighting control devices and other sensors.
OccupancyA/ancacy/Manual: A digital Passive Infrared (Microwave sensor) sensor combined with ambient with 3 difference modes as options.
Daylight Harvesting: Captured ambient light information is locally processed to raise and lower light levels based on available daylight.
Room and Zone Control: Pairs with room switches for code-compliant manual-on or auto-off capability. Sensors can be grouped into zones that share occupancy sensing data and coordinate light control based on detected motion.

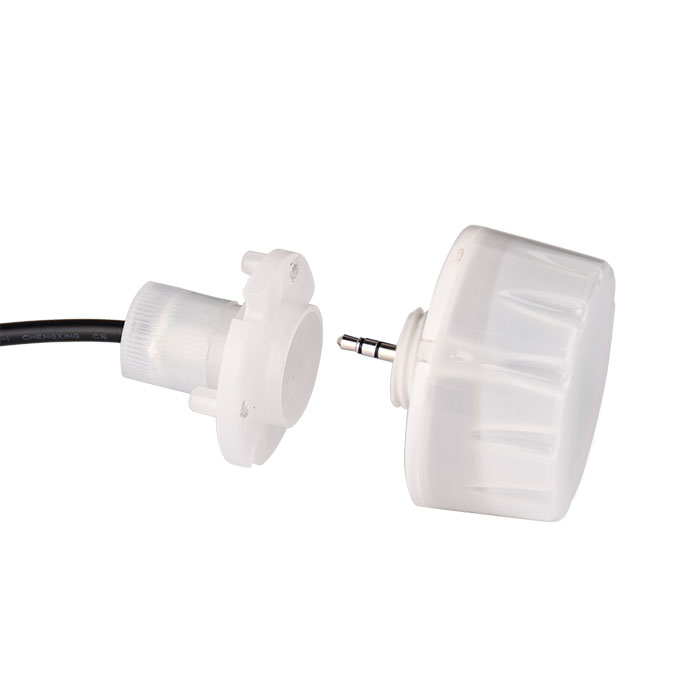

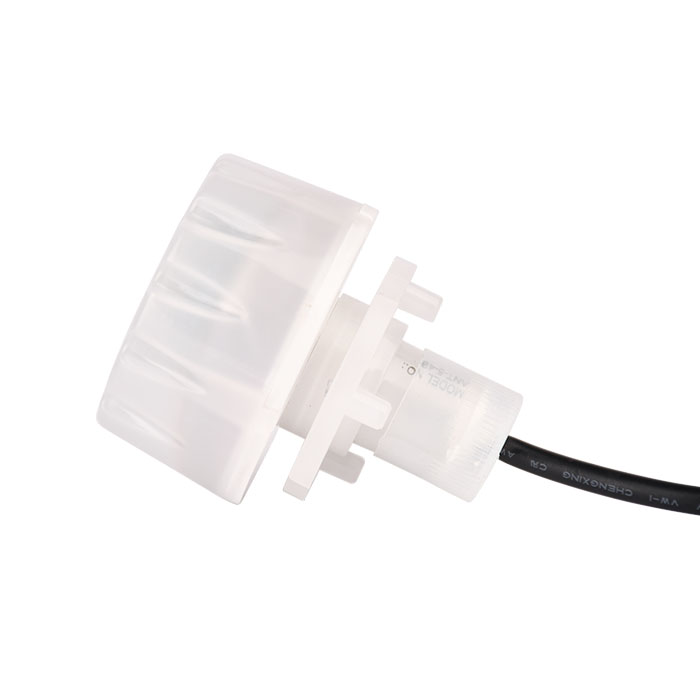

Bluetooth Microwave Sensor Parameters
| Bluetooth Microwave Sensor | |
| Motion Sensing | Microwave Sensor |
| Input Power | 10-28VDC,>50mA |
| Control Output | 0-10V, max 25mA sinking current |
| Mounting Height | 50ft(15m) Max. |
| Detection angle | 360° |
| Operating temperature | -20°C-60℃ |
| IPRating | IP65 |
| Wireless Standards | 5.0 Bluetooth Mesh |
Bluetooth Microwave Sensor Size Atlas

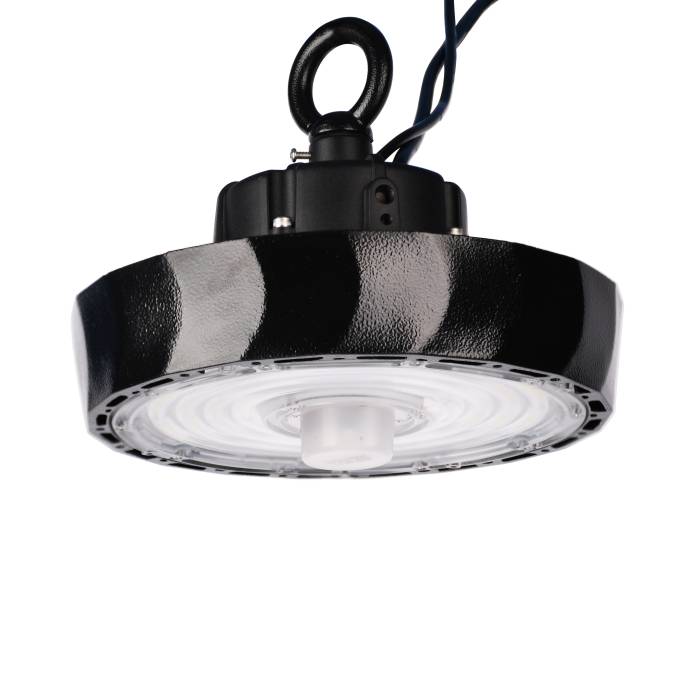

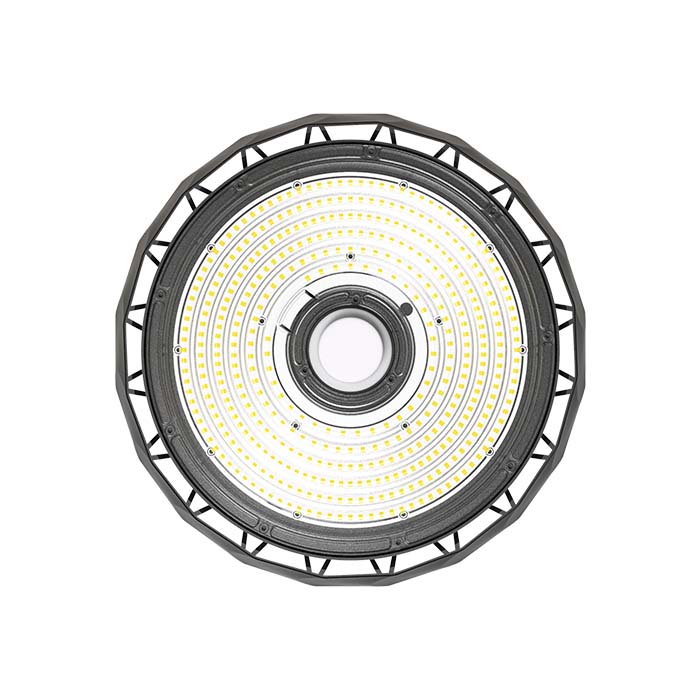

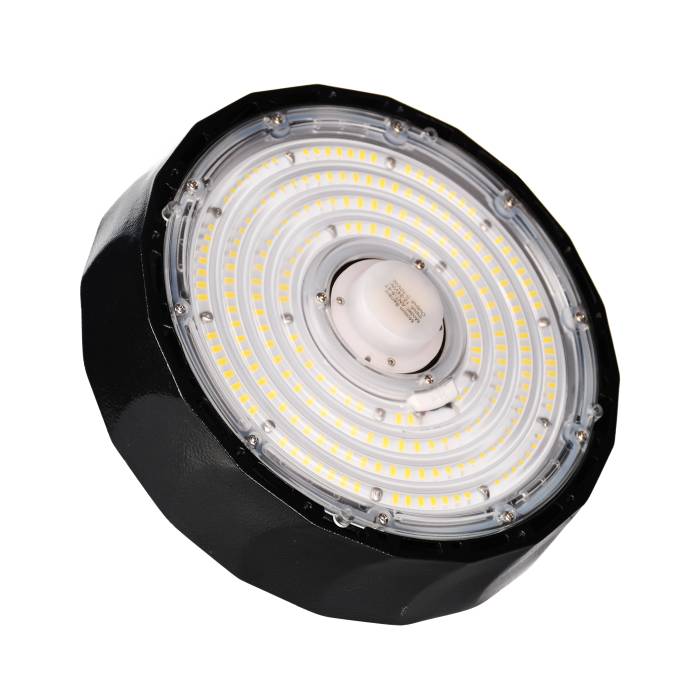

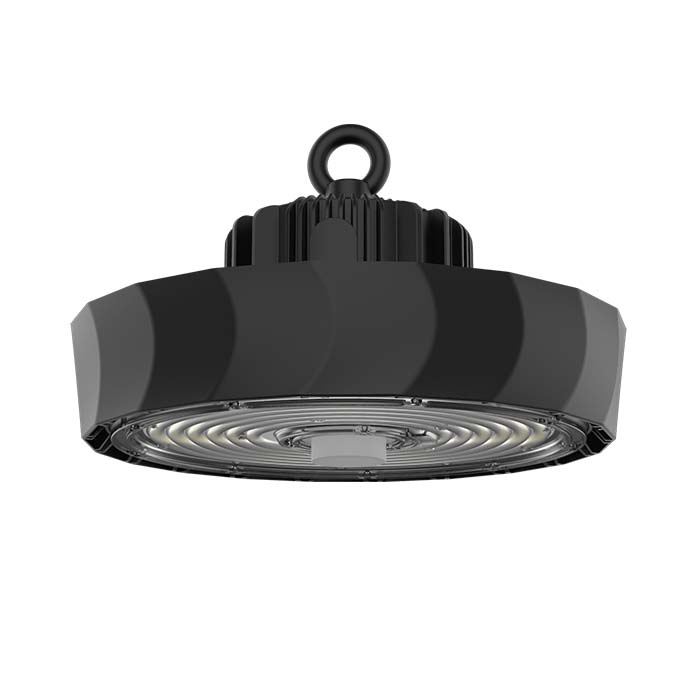

Yaorong Bluetooth Microwave Sensor UFO High Bay LightAdvantages
—————
- Intelligent light/human sensor: Yaorong Technology LED high bay light can be equipped with intelligent sensor module, the light will be on when people come, and the light will be off when people go. Intelligent dimming and microwave induction configuration are optional, freeing hands and embracing life.
- Good explosion-proof performance: Yaorong Technology LED high bay light adopts a special explosion-proof structure design, with excellent explosion-proof performance, which can be used in various flammable and explosive places. The installation is simple and the safety factor is high.
- Various installation methods: LED high bay lights support hook, chain, U-shaped bracket, wall-mounted and other installation methods, which can be used in different occasions.
- Long service life: Under ideal conditions, the service life of LED high bay lights is about 100,000 hours. Considering the influence of various factors, its service life is still as high as 50,000 hours, which is several times longer than that of traditional lamps.
- 5-year warranty: Yaorong Technology LED high bay lights provide up to 5 years warranty. Yaorong will solve the after-sales problems for you the first time, so that you can buy and use with peace of mind.
- High light utilization rate: Yaorong Technology LED high bay light adopts secondary light distribution design to enhance lighting uniformity, increase utilization rate and save energy. It can also reduce light pollution and light intrusion, and make lighting more comfortable.
—————
—————
| Bluetooth Microwave Sensor UFO High Bay Light | |||
| Model | CRI | Luminous Flux | Power |
| YR-HB252-W100 | ≥70 | 13000LM | 100W |
| YR-HB320-W150 | ≥70 | 19500LM | 150W |
| YR-HB320-W200 | ≥70 | 26000LM | 200W |
| YR-HB320-W240 | ≥70 | 31200LM | 240W |
| CCT | 30K/40K/50K/60K/70K | ||
| Warranty | 5 years | ||
| Temperature | -40°~50° | ||
| Power Efficiency | ≥0.9 | ||
| Protection level | IP65 | ||
| Beam angle | 60°/90°/120° | ||
| Shell Color | Black/Silver/White/Customized Color | ||
| Certification | ETL/DLC/CE/ROHS/3C/SAA | ||
—————

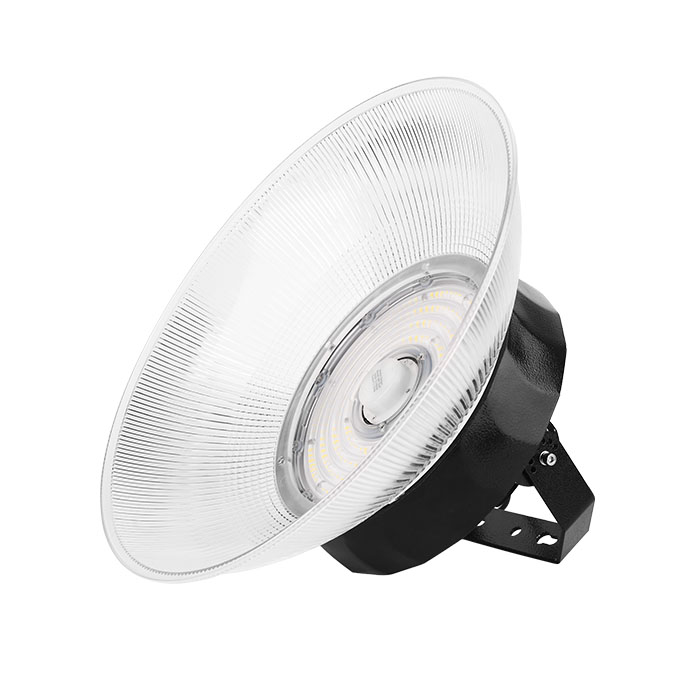

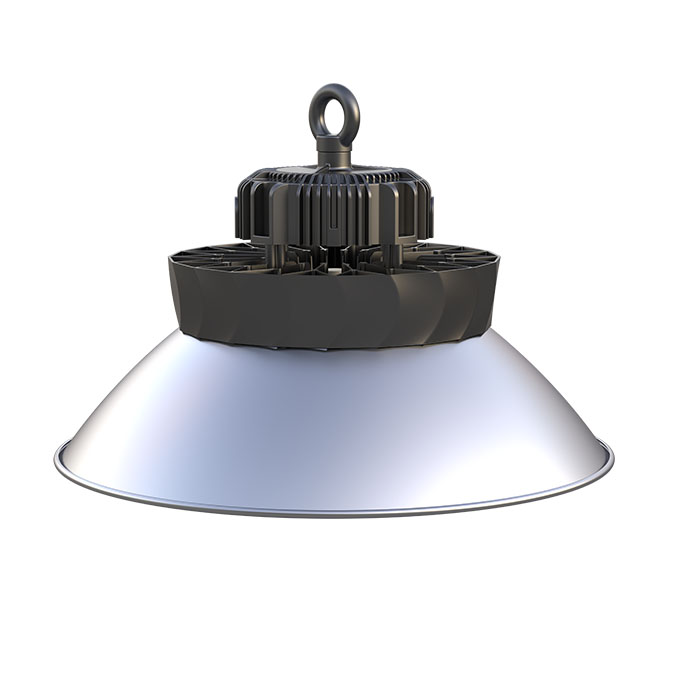

3 kind reflectors for option，All covers have 60°/90°/120°degree for options
Yaorong Bluetooth Microwave Sensor UFO High Bay Light Light Distribution
—————
60° light distribution angle
90° light distribution angle
120° light distribution angle
—————
| FONDA-RTU200 centralized controller | |||
| Name | FONDA-RTU200 centralized controller | Temperature | -40°~85° |
| Power | 12V battery | Sensitivity | -80~-60dBV |
| Communication | Support GPRS communication mode, support Ethernet remote communication mode | Interface | Support RS485, USB and Ethernet communication interface |
| Switch output | Built-in 4 DO switch output, 250VAC/5A | Frequency | 132KHz |
| System | Embedded Linux operating system, clear software structure, Reliable performance, easy to upgrade | Surge immunity | Level 2, Level 3, Level 4 |
| Elec Parameter | Voltage, current, power, factor, electric energy | Protection level | IP65 |
| Dimensions | 288*177*95mm | Antenna type | External |
| Advantages | 1. With LCD display function; 2. Based on a high-performance 32-bit industrial-grade ARM9 as a microcontroller; Using a highly reliable Linux operating system as an embedded application platform; 3. Built-in smart meter, realize remote data reading of electric energy and other data, support remote data reading of external electric meter; 4. Fully sealed protective shell, strong anti-interference ability, can withstand high voltage, lightning and high frequency signal interference; | ||
—————
—————
—————
| Wattage | Product Dimension(mm/in) | Carton Box Dimension | N.W (Kg/lb) | G.W(Kg/lb) | One Carton |
| 100W | 252×252×180mm 9.92×9.92×7.09in | 300×300×190mm 11.81×11.81×7.48in | 2.5Kg(5.51lb) | 3.0Kg(6.61lb) | 1PCS |
| 150W | 252×252×180mm 9.92×9.92×7.09in | 300×300×190mm 11.81x11-81×7.48in | 2.7Kg(5.95lb) | 3.4Kg(7.50lb) | 1PCS |
| 200W | 320×320×193mm 12.60×12.60×7.60in | 370×370×200mm 14.57×14.57×7.87in | 3.2Kg(7.05lb) | 4.1Kg(9.04lb) | 1PCS |
| 240W | 320×320×193mm 12.60×12.60×7.60in | 370×370×200mm 14.57×14.57×7.87in | 3.5Kg(7.72lb) | 4.5Kg(9.92lb) | 1PCS |
| PC Reflector | 470×470×210mm 18.50×18.50×8.30in | 370×370×200mm 14.57×14.57×7.87 in | / | 6.3Kg(13.89lb) | 10PCS |
| AL Reflector | 520×520×380mm 20.50×20.50×15.00in | 370×370×200mm 14.57×14.57×7.87in | / | 7.6Kg(16.76lb) | 10PCS |
—————
—————
- Please cut off the power before installation and make sure that the installation part can bear the weight of the lamp.
- In order to prevent the lamp from falling off, please make sure that the installation is correct.
- Please do not use it in a place with corrosive gas.
- Please do not cover any material on the lamp.
- For safety, please connect the ground wire securely.
- This LED lamp has a five-year warranty from the date of purchase.
- However, failures caused by disassembly, modification, or improper construction of this product are not within the scope of this warranty.
Five-year warranty
—————
- Yaorong Technology is committed to providing customers with cost-effective LED lighting products. And provide high-quality after-sales service ahead of peers.
- Yaorong Technology provides a 5-year warranty. However, unauthorized disassembly or destruction of Yaorong Technology LED lighting products will not be eligible for warranty service.
- If you need after-sales service support, please contact our after-sales staff during the warranty period. Yaorong Technology after-sales engineers communicate with you about after-sales matters.
Yaorong Bluetooth Microwave Sensor UFO High Bay Light case applications
—————
—————
Yaorong Technology Interior Exhibition Hall-Awarded Certification
Yaorong Technology Interior Exhibition Hall-Grow Light
—————
Yaorong R&D Workshop
Yaorong Technology Research Die Casting Workshop
